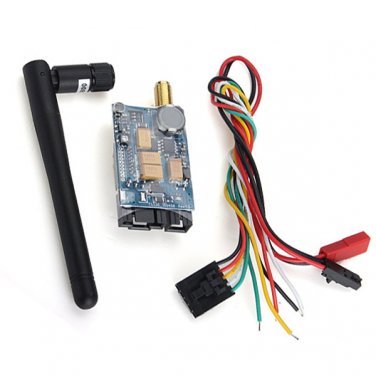

Boscam FPV 5.8G 200mW AV Wireless Transmitter TS351
Specification:
Brand Name: Boscam
Item Name: TS351 transmitter
Transmitter frequency: 5645-5945MHz; 8CH
Frequency control: built-in frequency and phase lock loop
ANT Connector: RP-SMA(inside the hole)
Video output: 1Vp-p 75Ω
Audio output: 1Vp-p 600Ω
Power supply: 6.5-12V
Video: PAL/NTSC
Dimension: 52mm x 68mm x 13mm
Built-in microphone audio pick up device
Built-in high-frequency PLL stability
8 Channel selectable
Low harmonic radiation
Direct input analog audio and video signals
Working frequency:
CH1: 5705
CH2: 5685
CH3: 5665
CH4: 5645
CH5: 5885
CH6: 5905
CH7: 5925
CH8: 5945
Package Included:
1 x TS351 transmitter
1 x Stock dipole whip antenna
1 x Power in harness
1 x Power out Video out Audio out harness
